European Microwave Week 2024
September 22 – 27 | Paris, France
Maury Microwave | Booth #113J
Join Maury Microwave at booth #113J during European Microwave Week (EuMW) 2024, the largest RF and microwave trade show in Europe, which takes place September 22 – 27 at the Paris Expo Porte de Versailles in Paris, France.
Booth #113J will feature innovative product demonstrations and solutions from Maury Microwave, from advanced and reliable noise parameter measurements at cryogenic temperatures to a turnkey one-box load pull solution. We look forward to demonstrating how we can support your test and measurement objectives with our advanced solutions and technical expertise.
EuMW 2024 Demonstrations
Learn the featured capabilities and products for each of our in-booth demos

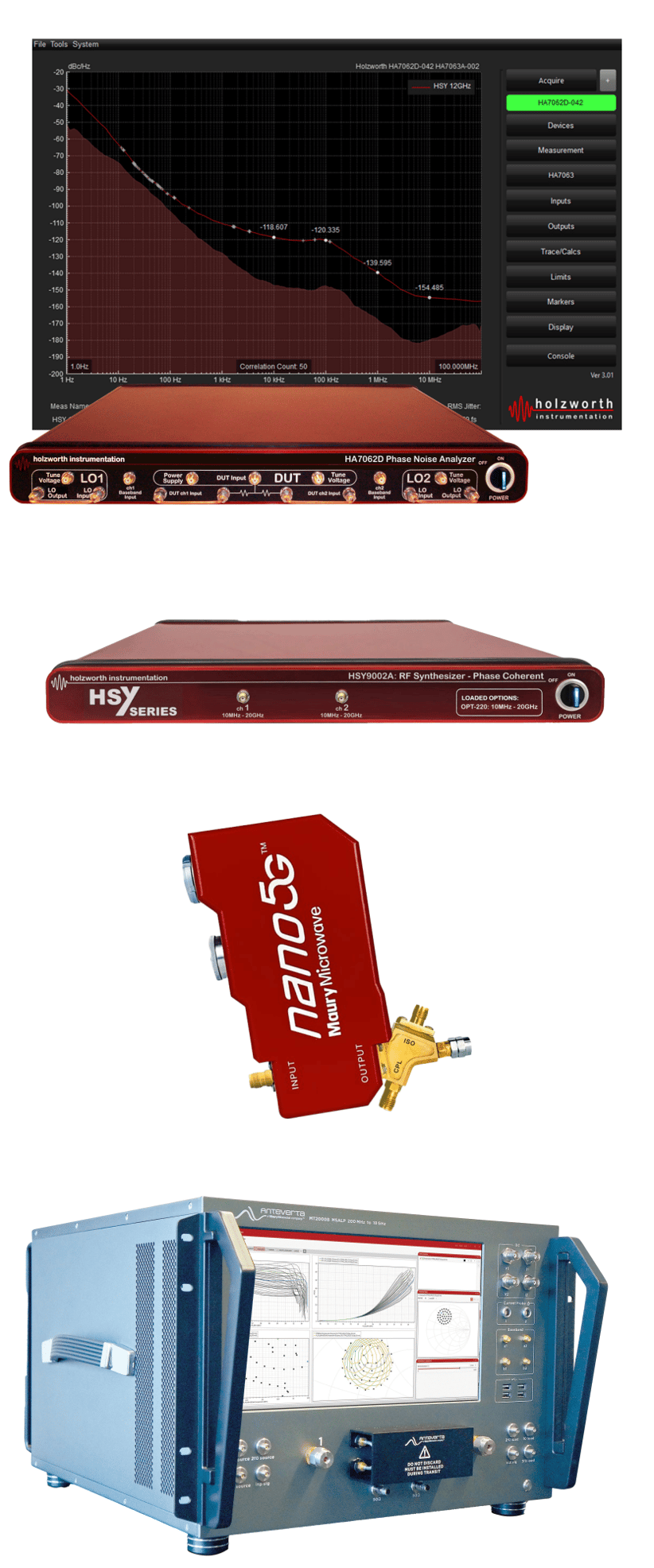

Qualifying LO Substitution Phase Noise Improvements
Today’s communication systems utilize high order modulation to achieve high data throughput, which requires faster clock rates that can increase symbol errors. A potential source of these errors is phase noise from the existing local oscillator (LO). This demonstration features the HSY9000A Series multi-channel RF synthesizer with the ultra-low phase noise option as an ideal LO substitute, and the HA7062D series for real-time phase noise analysis.
On-Wafer Passive Load Pull for 5G FR2
In an in-booth demo at EuMW 2024, a vector-receiver source-pull and load-pull setup will utilize two Nano5G™ tuners to manipulate source and load impedance and optimize the performance of a high-frequency, high-power device. The Nano5G model enables highly reliable passive load pull measurements for 5G applications, especially in the 28 GHz and 39 GHz bands allocated for FR2, although continuous operation is available from 18 GHz – 50 GHz.
Wideband Impedance Control at 5G FR2
The MT2000 is a turnkey one-box load pull solution that offers wideband impedance control for modulated signals over the hardware’s modulation bandwidth and performs load pull at high speeds – up to 1000 impedance/power states per minute – with no limitation on Smith chart coverage. Watch the MT2000 mixed-signal active load pull system in action as it performs load pull on an LNA.
Cryogenic Noise Parameters
LNA design for quantum computing, radio astronomy, and other applications that operate at cryogenic temperatures require advanced and reliable noise parameter measurement capabilities. This demonstration uses a cryogenic noise parameter system, featuring the MT7553A03 noise receiver module, that can extract noise parameters down to 4 Kelvin at cryogenic temperatures while utilizing a cryogenic solid-state tuner to achieve non-50 ohm environments at the DUT input.
65 GHz Noise Parameters
In any active device or circuit, noise occurs naturally and establishes a limit for the lowest level of useful signals. It is crucial, therefore, to design circuits that minimize the effects of noise and its impact on performance. Noise parameters are crucial to know when designing LNA using highly mismatched devices. LNA design is even more critical in high-frequency applications that operate at lower power levels. This demonstration features the Maury Microwave MT7553C01 noise receiver module (0.1 GHz – 65 GHz) in a broadband noise parameter system.

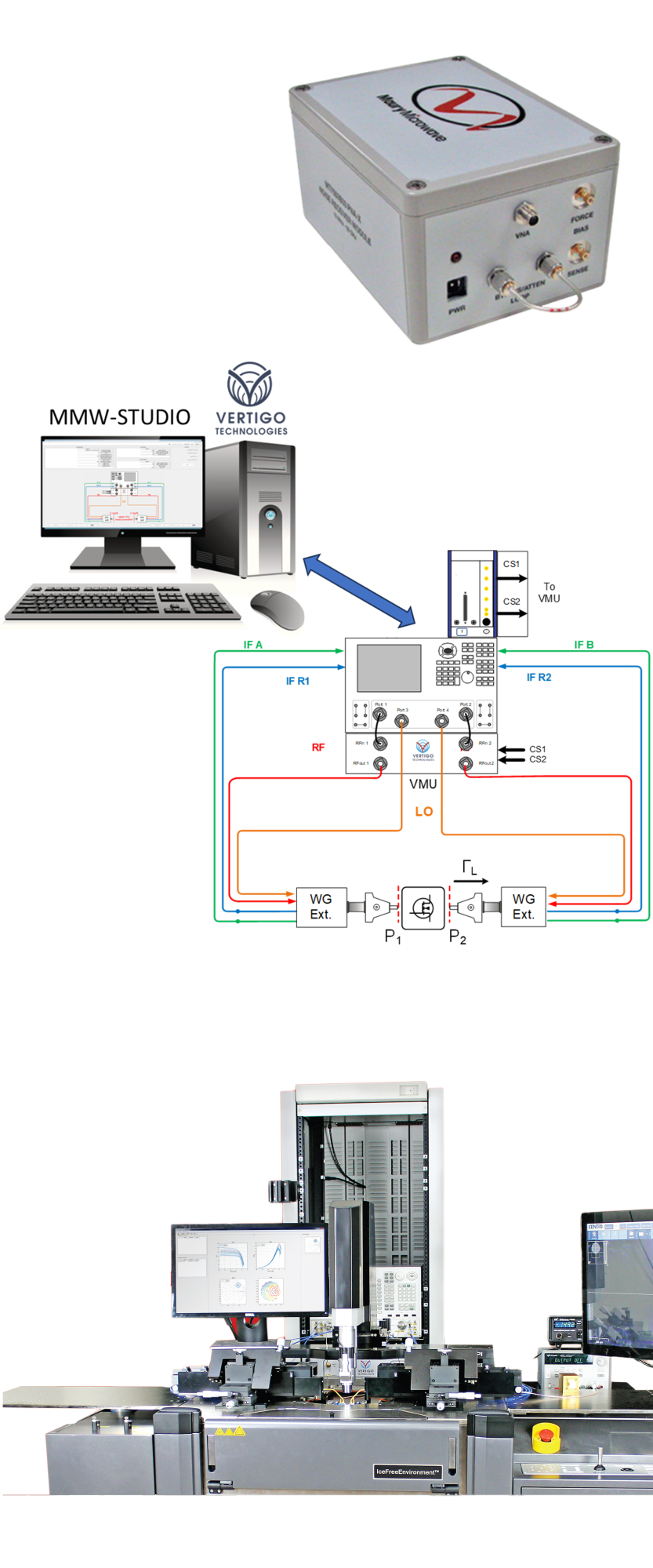

Active Load Pull for 6G and Sub-THz Frequencies
Learn how the MMW-STUDIO – a software suite provided by Vertigo Technologies that enables power and phase control at the DUT reference plane through the extenders – performs a power-controlled S-parameter measurement and an active load pull in the WR6.5 waveguide band (110 GHz – 170 GHz) on a waveguide connectorized amplifier.
Products on Display at EuMW 2024
Maury Microwave solutions encompass amplifiers, device characterization, interconnects, precision calibration, RF power analysis, channel emulation, low phase noise instrumentation, and noise generation.
Products on display at EuMW 2024 include:
- Manual impedance tuners
- Low-loss pulsed bias tees
- LLC-series bidirectional airline couplers
- Calibration-grade metrology adapters
- Torque wrenches
- Characterized Device SOLT calibration kits
- Characterized Device calibration verification kits
- Connector gage kits
- PMX40 RF power meter
- RTP5000 series real-time power sensors
- HSM series RF synthesizer modules
- NC1000 series amplified noise modules
- NC3000 series calibrated coaxial noise sources
Maury Microwave with Matech Electronique at Booth #421B
EMC immunity testing evaluates device performance under different levels of electromagnetic interference.
Amplifiers are critical for generating power levels strong enough to drive antennas to required field strengths, facilitating appropriate testing of equipment within EMC chambers. To ensure test accuracy and compliance with emerging high-frequency standards (6 GHz to 40 GHz), amplifiers must meet wideband range requirements, maintain linearity for signal integrity, and handle modulated signals efficiently.
In a demo in booth #421B with Matech Electronique, learn how Maury Microwave best-in-class solutions support precise and reliable EMC immunity testing with the MPA-series amplifier, RTP5000 Series Real-Time Peak Power Sensor, StabilityPlusTM phase stable cable assemblies, and LLC-series low-loss, high power bidirectional airline coupler.
Maury Microwave
Maury Microwave is your calibration, measurement, and modeling solutions partner. We supply adapters, cable assemblies, and attenuators; coaxial and waveguide VNA calibration kits, calibration standards, and calibration systems; turnkey characterization solutions including measurement and modeling software, impedance tuners, load pull and noise parameter systems, and more. Further expanding our test and measurement technology portfolio, our distinct series of product lines provide various leading-edge solutions across satellite channel emulation, RF power measurement, high-performance phase noise analysis, RF synthesis, and noise generation. With our best-in-class solutions, we complete your lab.
Featured Product Lines
Amplifiers
Combining measurement and load pull expertise with modern solid-state power amplifier design practices, the test and measurement instrument amplifiers offer the highest reliability and support for each unique application and use-case. These best-in class amplifiers satisfy a wide range of application-specific requirements, including simultaneous high-power, wide bandwidth, low harmonic power, and high linearity. For EMC immunity testing, the EMC line of amplifiers offer outstanding wideband ranges and required linearity, supporting the future development of 5G products, automotive and ordinary equipment, and military systems while ensuring compliance with various international standards.
Device Characterization
Industry-leading device characterization solutions encompass active load pull systems, impedance tuners, pulsed biased systems, measurement and modeling software, and various system accessories. Turnkey one-box active load pull solutions combine multiple bench setups into a single box, offering unrivaled load pull speeds and maximum smith chart coverage. Impedance tuners range from automated, manual, and stub tuners, while pulsed biased systems include pulsed IV and SMU systems. Accessories include current probes, load pull test fixtures, low-loss couplers and pulsed bias tees, multiplexers, and noise conditioning modules. Device characterization solutions are supported by a comprehensive software suite for seamless and optimized testing.
Interconnects
Interconnect solutions encompass a broad range of products designed to reduce measurement uncertainties and improve measurement accuracy and repeatability. The range of available adapters include calibration-grade metrology adapters, color-coded precision adapters that combine high performance with ease-of-identification, adapters that feature a quick-connect design with a push-on/pull-off capability, and adapters targeted for daily use in RF and microwave labs or production facilities. Cable assembly solutions offer high flexibility, phase stability, and optimization for use in thermal vacuum chambers (TVAC) and accurate, repeatable on-wafer measurements. Color-coded precision coaxial attenuators reduce signal power without adding distortions, while additional testing tools span connector gage kits to torque wrenches.
Precision Calibration
Precision calibration solutions feature noise calibration systems (NCS), coaxial and waveguide VNA calibration kits, and characterized device (CD) calibration verification kits designed for 1-port and 2-port VNA calibration validation for well-matched and mismatched DUTs. The various calibration standards include airline, fixed load, mismatch airline, mismatch load, open circuit and short circuit terminations, and waveguide sections. These precision calibration solutions are supported by a robust software suite that improves VNA calibration, validation, measurement, visualization, and analysis.
Boonton
The Boonton product line features high-performance RF and microwave test equipment for radar, avionics, electronic warfare, satellite and wireless communications, and EMI/EMC applications. Used across the semiconductor, military, aerospace, medical and communications industries, these solutions enable a wide range of RF power measurements and signal analysis for RF product design, production, maintenance, and system integration. The Boonton product line includes peak and average RF power meters, real-time USB power sensors, RF signal generators, RF voltmeters, modulation analyzers, and audio analyzers.
dBm
The dBm product line features the most advanced non-terrestrial RF channel emulation solution for satellites, 5G handsets, radios, UAVs, aircraft, 5G non-terrestrial networks (NTN), satellite payloads, and ground stations, enabling insight into real-world performance before deployment. Whether emulating RF link effects on the signal path or distortions caused by hardware, simulated impairments include delay, signal Doppler, attenuation, phase offset, additive white Gaussian noise (AWGN), frequency hopping, payload, and multipath fading.
Holzworth
The Holzworth product line features high-performance phase noise analyzers and signal generators for test and measurement solutions in government, commercial, and academic environments. Optimized for ultra-low phase noise performance, these solutions incorporate fast switching speeds, spectral purity, accuracy, and high reliability while meeting stringent performance specifications in a unique form factor. Product categories include real-time phase noise analyzers, broadband RF and microwave synthesizers, frequency dividers, amplifiers, downconverters, phase detectors, and phase shifters.

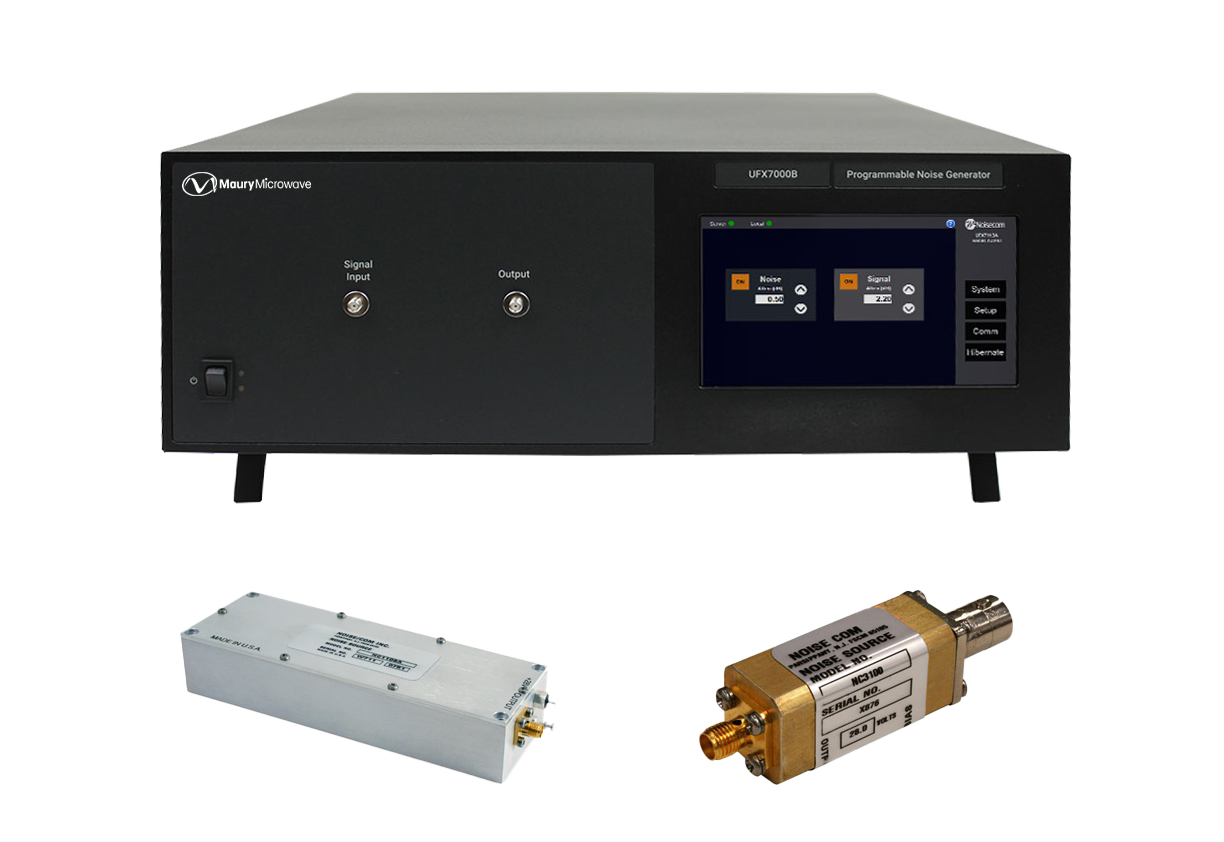

Noisecom
The Noisecom product line features RF and microwave noise sources for signal jamming and impairment, reference level comparison and calibration, receiver robustness testing, and jitter injection. Electronic noise generation devices come in a variety of product types, including noise diodes, built-in-test modules (BITE), calibrated noise sources, jitter sources, cryogenic noise standards, and programmable instruments. Calibrated noise sources are available from audio to millimeter wavelengths in coaxial or waveguide modules. Programmable instruments are highly configurable and able to generate precise carrier-to-noise, signal-to-noise, and broadband white noise. To meet the unique needs of challenging applications, the Noisecom product line can be customized for high power, high crest factor, and specific filter responses with a wide selection of input and output options.
